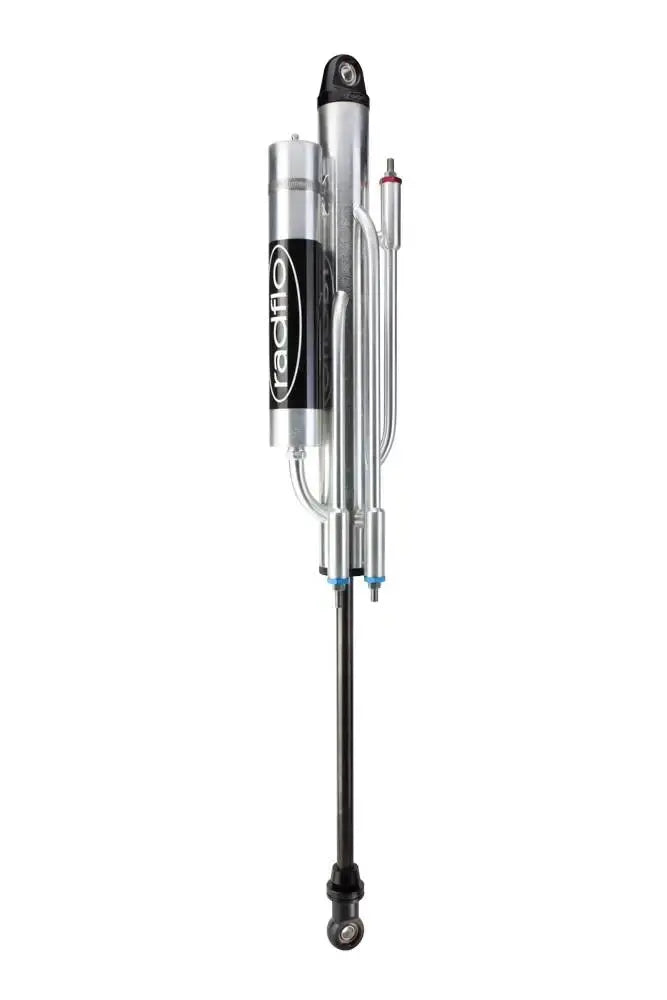

Radflo Off Road 2.5 Bypass 10″ Travel 7/8″ Shaft Remote Reservoir 3 Tube

Radflo Off Road 2.5 Bypass 10″ Travel 7/8″ Shaft Remote Reservoir 3 Tube





• Part Number: 6BP-302-0R
• Product Type: Off Road 2.5 Inch Diameter Bypass 10 Inch Travel With 7/8 Inch Shaft, Remote Reservoir, 3 Tube
• Travel Length: 10 Inch
• Shaft Size: 0.875 Inch
• Front/Rear App: Front|Rear
• Bearing Size: 0.625 Inch
• Body Diameter: 2.5 Inch
• Body Material: SSID Alloy Steel Tube
• Body Finish: Clear Cadmium Plating
• Body Caps/Eyelets Material: CNC Machined 6061 Aluminum
• Body Caps/Eyelets Finish: Black Anodized
• Bypass Tubes: 3
• Mounting Hardware: Universal Spherical Bearing and Hardware
• Rod Material: Nitro Steel
• Rod Finish: Mirror Polished
• Rod Guide Material: CNC Machined Bronze
• Rod Guide Finish: PTFE Coating
• Piston Type: Radflo Aluminum Freeflo Racing Piston
• Seal Type: Combination Quad-Ring and Lip Seal (Rebuildable)
• Service Status: Consumer Or Factory Serviceable
• Valving Type: Velocity-Sensitive Deflective Disc
• Valving Tuning: Consumer or Factory Tunable
• Valving Adjustment: Self-Adjusting
• Oil Type: Radflo High-Temp Foam Resistant Suspension Fluid
• Pressurization: Nitrogen Gas
• Pressure Amount: Starting at 200psi Based On Location
• Sold Individually
